Super Arch fender

Super Arch fender

Product Item ： Fendersys-DA

Features:

High Energy Absorption, Low reaction force;
Simple and reasonable structure, with long life span;
High Durability;
Large Range Performance;
Easy Installation;

Applications:

Container Terminals;
Grocery Ship;
Ro-RO Ship and Cruise Terminal;
Shipyard;

Specifications:

DA-A300H

Specification	C(mm)	P(mm)	L1(mm)	L(mm)	n
DA-A300X1000	140	870	1000	1150	2
DA-A300X1500	140	685	1500	1650	3
DA-A300X2000	137.5	625	2000	2150	4
DA-A300X2500	140	790	2500	2650	4
DA-A300X3000	145	715	3000	3150	5
DA-A300x3500	140	674	3500	3650	6

Performance:

R:KN E:KN.M		RS		RH		RO		RL
R:KN E:KN.M		52.5%	55%	52.5%	55%	52.5%	55%	52.5%	55%
DA-A300X1000	R	324	450	249	346	206	286	177	246
DA-A300X1000	E	41	44	31	33	26	28	22	24
DA-A300X1500	R	486	675	374	519	309	429	266	369
DA-A300X1500	E	62	66	47	50	39	42	33	36
DA-A300X2000	R	648	900	498	692	412	572	354	492
DA-A300X2000	E	82	88	62	66	52	56	44	48
DA-A300X2500	R	810	1125	623	865	515	715	443	615
DA-A300X2500	E	103	110	78	83	65	70	55	60
DA-A300X3000	R	972	1350	747	1038	618	855	531	738
DA-A300X3000	E	123	132	93	99	78	84	66	72
DA-A300X3500	R	1134	1575	872	1211	721	1001	620	861
DA-A300X3500	E	144	154	109	116	91	98	77	84

Note: Tolerance±10%

2.DA-A400H

Specification	C(mm)	P(mm)	L1(mm)	L(mm)	n
DA-A400X1000	150	900	1000	1200	2
DA-A400X1500	150	700	1500	1700	3
DA-A400X2000	147.5	635	2000	2200	4
DA-A400X2500	150	800	2500	2700	4
DA-A400X3000	150	725	3000	3200	5
DA-A400x3500	150	680	3500	3700	6

Performance:

R:KN E:KN.M		RS		RH		RO		RL
R:KN E:KN.M		52.5%	55%	52.5%	55%	52.5%	55%	52.5%	55%
DA-A400X1000	R	432	600	332	461	275	382	236	328
DA-A400X1000	E	73	78	56	60	46	49	40	43
DA-A400X1500	R	648	900	498	692	413	573	354	492
DA-A400X1500	E	110	117	84	90	69	74	60	65
DA-A400X2000	R	864	1200	664	922	550	764	472	656
DA-A400X2000	E	146	156	112	120	92	98	80	86
DA-A400X2500	R	1080	1500	830	1153	688	955	590	820
DA-A400X2500	E	183	195	140	150	115	123	100	108
DA-A400X3000	R	1296	1800	996	1383	825	855	708	984
DA-A400X3000	E	219	234	168	180	138	147	120	129
DA-A400X3500	R	1512	2100	1162	1614	963	1001	826	1148
DA-A400X3500	E	256	273	196	210	161	172	140	151

Note: Tolerance±10%

3.DA-A500H

Specification	C(mm)	P(mm)	L1(mm)	L(mm)	n
DA-A500X1000	160	930	1000	1250	2
DA-A500X1500	160	715	1500	1750	3
DA-A500X2000	157.5	645	2000	2250	4
DA-A500X2500	160	810	2500	2750	4
DA-A500X3000	165	730	3000	3250	5
DA-A500x3500	160	686	3500	3750	6

Performance:

R:KN E:KN.M		RS		RH		RO		RL
R:KN E:KN.M		52.5%	55%	52.5%	55%	52.5%	55%	52.5%	55%
DA-A500X1000	R	540	750	415	576	344	478	295	410
DA-A500X1000	E	113	121	87	93	72	77	62	66
DA-A500X1500	R	810	1125	623	864	516	717	443	615
DA-A500X1500	E	170	182	131	140	108	116	93	99
DA-A500X2000	R	1080	1500	830	1152	688	956	590	820
DA-A500X2000	E	226	242	174	186	144	154	124	132
DA-A500X2500	R	1350	1875	1038	1440	860	1195	738	1025
DA-A500X2500	E	283	303	218	233	180	193	155	165
DA-A500X3000	R	1620	2250	1245	1728	1032	1434	885	1230
DA-A500X3000	E	339	363	261	279	216	231	186	198
DA-A500X3500	R	1890	2625	1453	2016	1204	1673	1033	1435
DA-A500X3500	E	396	424	305	326	252	270	217	231

Note: Tolerance±10%

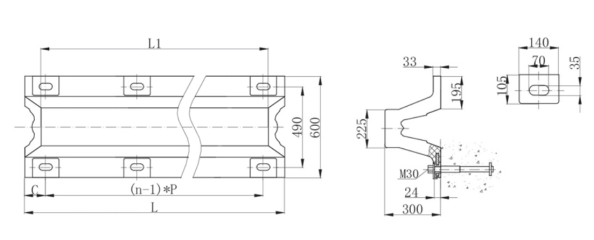

4.DA-A600H

Specification	C(mm)	P(mm)	L1(mm)	L(mm)	n
DA-A600X1000	170	960	1000	1300	2
DA-A600X1500	170	730	1500	1800	3
DA-A600X2000	167.5	655	2000	2300	4
DA-A600X2500	170	820	2500	2800	4
DA-A600X3000	170	740	3000	3300	5
DA-A600x3500	170	692	3500	3800	6

Performance:

R:KN E:KN.M		RS		RH		RO		RL
R:KN E:KN.M		52.5%	55%	52.5%	55%	52.5%	55%	52.5%	55%
DA-A600X1000	R	647	899	498	692	412	572	354	492
DA-A600X1000	E	163	175	126	135	104	111	89	95
DA-A600X1500	R	971	1349	747	1038	618	858	531	738
DA-A600X1500	E	245	263	189	203	156	167	134	143
DA-A600X2000	R	1294	1798	996	1384	824	1144	708	984
DA-A600X2000	E	326	350	252	270	208	222	178	190
DA-A600X2500	R	1618	2248	1245	1730	1030	1430	885	1230
DA-A600X2500	E	408	438	315	338	260	278	223	238
DA-A600X3000	R	1941	2697	1949	2076	1236	1716	1062	1476
DA-A600X3000	E	489	525	378	405	312	333	167	285
DA-A4600X3500	R	2265	3147	1734	2422	1442	2002	1239	1722
DA-A4600X3500	E	571	613	441	473	364	389	312	333

Note: Tolerance±10%

5.DA-A800H

Specification	C(mm)	P(mm)	L1(mm)	L(mm)	n
DA-A800X1000	180	1040	1000	1400	2
DA-A800X1500	180	770	1500	1900	3
DA-A800X2000	182	680	2000	2400	4
DA-A800X2500	182.5	845	2500	2900	4
DA-A800X3000	180	760	3000	3400	5

Performance:

R:KN E:KN.M		RS		RH		RO		RL
R:KN E:KN.M		52.5%	55%	52.5%	55%	52.5%	55%	52.5%	55%
DA-A800X1000	R	864	1200	664	922	550	764	472	656
DA-A800X1000	E	290	311	223	239	185	198	159	170
DA-A800X1500	R	1296	1800	996	1383	825	1146	708	984
DA-A800X1500	E	435	467	335	359	278	297	239	255
DA-A800X2000	R	1728	2400	1328	1844	1100	1528	944	1312
DA-A800X2000	E	580	622	446	478	370	396	318	340
DA-A800X2500	R	2160	3000	1660	2305	1375	1910	1180	1640
DA-A800X2500	E	725	778	558	598	463	495	398	425
DA-A800X3000	R	2592	3000	1992	2766	1650	2292	1416	1968
DA-A800X3000	E	870	933	669	717	555	594	477	510

Note: Tolerance±10%

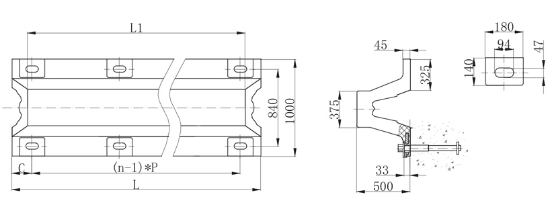

6.DA-A1000H

Specification	C(mm)	P(mm)	L1(mm)	L(mm)	n
DA-A1000X1000	200	1100	1000	1500	2
DA-A1000X1500	200	800	1500	2000	3
DA-A1000X2000	202	700	2000	2500	4

Performance:

R:KN E:KN.M		RS		RH		RO		RL
R:KN E:KN.M		52.5%	55%	52.5%	55%	52.5%	55%	52.5%	55%
DA-A1000X1000	R	1080	1500	830	1153	688	956	590	820
DA-A1000X1000	E	454	486	349	374	289	310	248	266
DA-A1000X1500	R	1620	2250	1245	1730	1032	1434	885	1260
DA-A1000X1500	E	681	729	524	561	434	465	372	399
DA-A1000X2000	R	2160	3000	1660	2306	1376	1912	1180	1640
DA-A1000X2000	E	908	972	698	748	578	620	496	532

Note: Tolerance±10%
